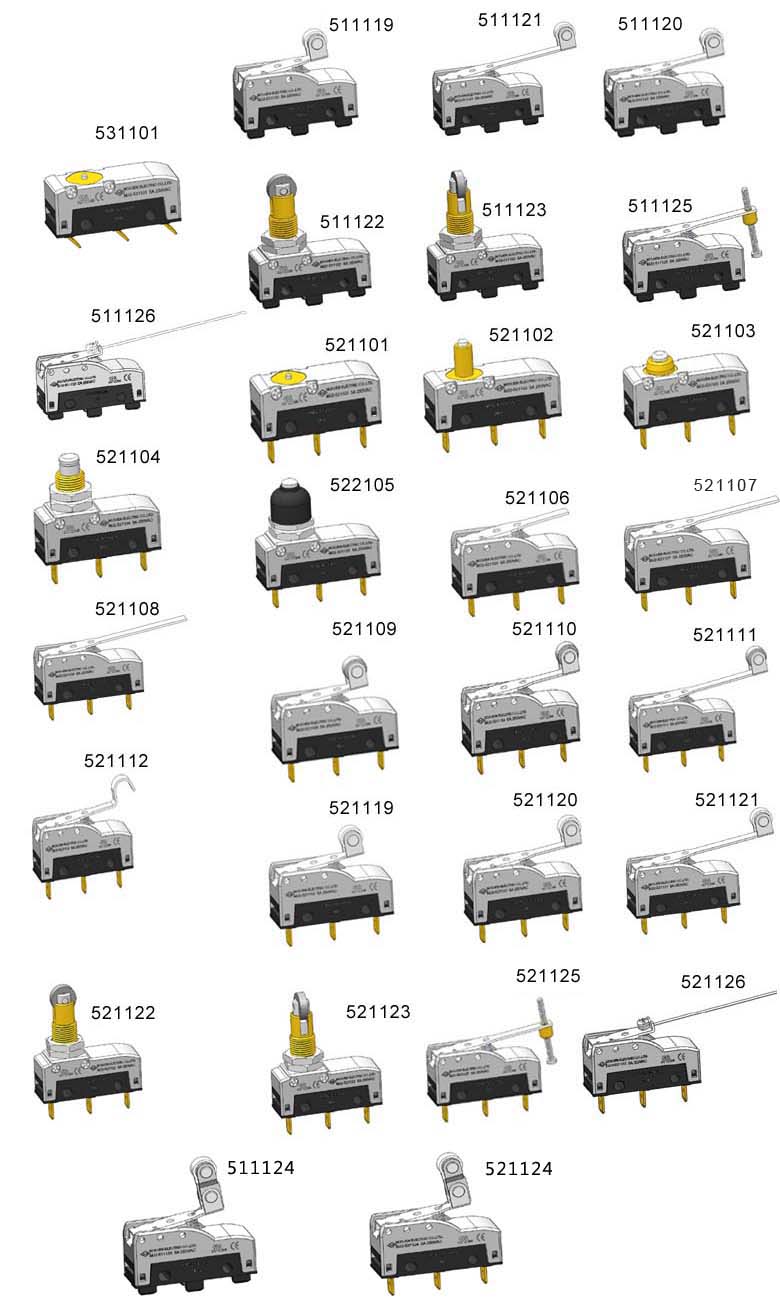

MJ3-5 Miniature switches
Features :
- Dual contacts.

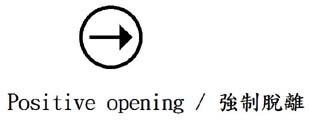

- Positive opening.
- IP40 & IP65 protection degree.
- Flexible application
RATING Current :
- 5A / 250VAC
- 4A / 24VDC 1.1A / 125VDC 0.4A / 250VDC
- IEC60947- 5- 1 5A 250V ~ IP40＆65 AC15 Ith 16A
CHARACTERISTICS :
| Operating frequency | Mechanically: 60 operations/min. Electrically: 30 operations. |
| Contact resistance | 15m Ω max.(initial) |
| Insulation resistance | 100M Ω min (at 500 VDC) |
| Dielectric strength | 1000VAC, 50/60Hz for 1 minute between non-continuous terminals 2000VAC, 50/60Hz for 1 minute between current-carry part and ground. |
| Vibration | 1.5mm amplitude at 55Hz |
| Protection Degree | IP40 , IP65 with protection terminal cover |
| Ambient temperature | -25 ° C to +80 ° C |
| Humidity | 85% RH max |
| Service life | Mechanically: 10,000,000 operations Electrically: 500,000 operations |
