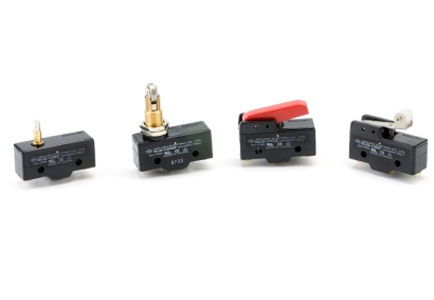

MJ2 mini switches
Standard IP65 or IP67 sealed plastic micro switch. With a switching capacity of 15A 230V/AC and available in a wide range of different actuators and shift points.
Optional Phenolic housing in a high temperature. If connections can choose from standard screw connection is available but the solder and the 250×3 type fastonaansluiting. Maximum lifespan is 20 million circuits.
MJ2 microswitch. This switch is used in many applications and is therefore available in several different versions. Besides, this switch with various metal and plastic controls and actuators available. For higher temperatures (80gr.C) MJ2 of a phenol housing is available. At a customer, the switch can also be supplied with cable connected. Also the shedding of the connection for the corresponding IP67 protection is possible.
Features :
- Regular or sealed operating heads.
- Momentary contacts.
- Completely sealed constructure.
- Wide choice of heads and actuators.
- Plastic (Standard) or phenolic housing.
- Regular or light operating force.
- Temperature range :
+5 ° F to +175 ° F (-15 ° C to +80 ° C) - Soldering Terminal or Fast Terminal
RATING :
| 15A | 125 or 250 V AC |
| 1/8 HP | 125 V AC |
| 1/4 HP | 250 V AC |
| 1/2 A | 125 V DC |
| 1/4 A | 250 V DC |

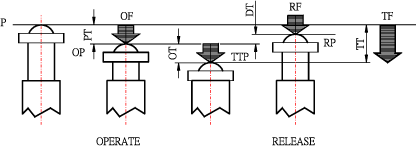

| OF : Operating Force | TTP : Total Travel Position |
| RF : Releasing Force | PT : Pretravel |
| TF : Total Force | OT : Overtravel |
| FP : Free Position | DT : Travel Differential |
| OP : Operating Position | TT : Total Travel |
| RP : Releasing Position |
Remark :
Oil Tight Series

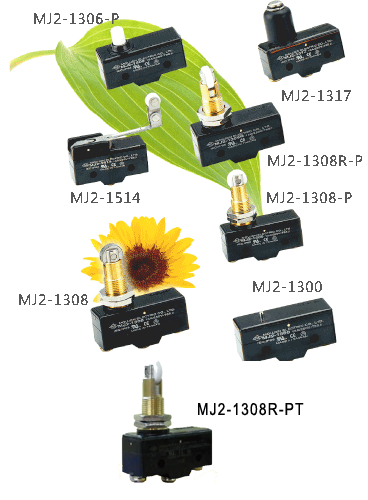

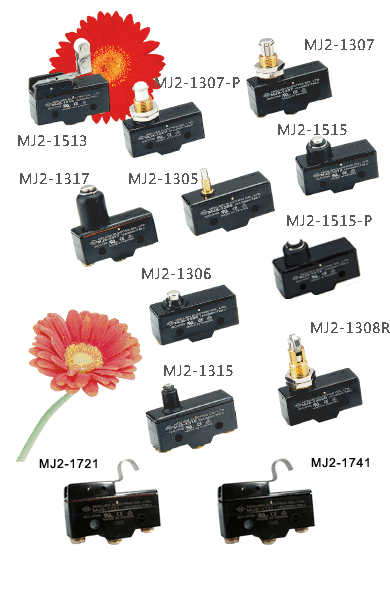

| MJ2-1315 | MJ2-1317 | ||
| MJ2-1513 | MJ2-1514 | MJ2-1515 | |
| MJ2-1711 | MJ2-1712 | MJ2-1713 | MJ2-1714 |
| MJ2-1721 | MJ2-1741 | MJ2-1515-P |
Sensitivity Adjustable Series
| MJ2-1513 | MJ2-1514 | MJ2-1543 | MJ2-1544 |
| MJ2-1701 | MJ2-1702 | MJ2-1703 | MJ2-1704 |
| MJ2-1711 | MJ2-1712 | MJ2-1713 | MJ2-1714 |
CHARACTERISTICS :
| Operating speed | 0.01mm to 1m/sec |
| Operating frequency | Mechanically : 240 operations/min. Electrically : 20 operations/min. |
| Contact resistance | 15m Ω max.(initial) |
| Insulation resistance | 100M Ω min (at 500 VDC) |
| Dielectric strength | 1,000VAC. 50/60 Hz for 1 minute between non-continuous terminals 2,000 VAC, 50/60 Hz for 1 minute between current-carry part and ground. |
| Vibration | Malfunction Durability : 10 to 55 Hz 1.5mm double amplitude. |
| Shock | Mechanical Durability : Approx.1,000m/sec2 (approx.100G’s) Malfunction Durability : Approx.300m/ sec2 (approx.30G’s) |
| Ambient operating temperature | General purpose type: – 25 ° C to + 80 ° C Sealed type: – 15 ° C to + 80 ° C |
| Humidity | General purpose type : 85% RH max Sealed type : 95% RH |
| Service life | Mechanically : 20,000,000 operations min Electrically : (1.7A,110VAC)MAX , 500,000 operations min. |
ORDER GUIDE :
Plastic body (Standard type) :

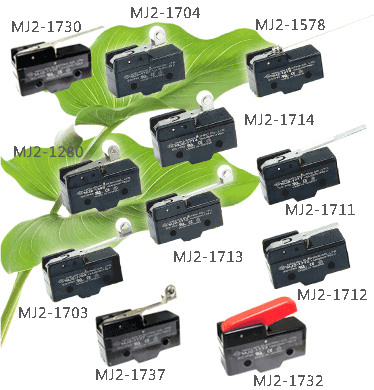

| MJ2-1280 | MJ2-1300 | MJ2-1305 | MJ2-1306 |
| MJ2-1307 | MJ2-1308 | MJ2-1308R | MJ2-1543 |
| MJ2-1544 | MJ2-1578 | MJ2-1701 | MJ2-1702 |
| MJ2-1703 | MJ2-1704 | MJ2-1315 | MJ2-1317 |
| MJ2-1513 | MJ2-1514 | MJ2-1515 | MJ2-1711 |
| MJ2-1712 | MJ2-1713 | MJ2-1714 | MJ2-CB2 |
| MJ2-1730 | MJ2-1732 | MJ2-1737 | |
| MJ2-1704-F (metal roller) | MJ2-1703-F (metal roller) | ||
| MJ2-1737-F (metal roller) | |||
Type Number Ordering Code :
1) Series basic definition code MJ2 :
2) Feature type number :
1280~1744 set up ordinal number according to different driving devices. Please refer to type picture and type number in the catalogue.
3) Body(case) material type :
Non-indicate : Plastic Body (standard)
P : Phonolic Body (custom made).
4) OF(operating force) type :
Non-indicate : Normal force (standard)
L : Light force (custom made).
5) Terminal type :
Non-indicate : Only attached screw (standard)

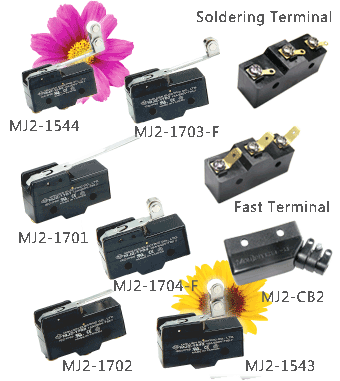

S : Soldering Terminal Type (custom made)
A : Fast Terminal Type (custom made).
6) Roller or head material type :
F : Metal roller (custom made)
P : Plastic Roller(POM)
Head(Custom made : POM TEFLON).
7) High current type(custom made) :
P20 : 20A
